18.0 GHz to 26.5 GHz Dual Polarized Probe

$10,725.00

Frequency, Min (GHz):
18.0
Frequency, Max (GHz):
26.50
Waveguide Type:
WR-42
Connectors:
2.92 mm Female (2)
Max Power (Watts):
15 W
Sales Tax and Shipping:
Calculated at Checkout
Adding to cart… The item has been added

NSI-MI offers a dual-linearly polarized, high-performance probe covering 18–26.5 GHz. This probe is designed specifically for near-field antenna measurements and come with a typical probe pattern correction coefficients for PNF and SNF measurements*. It covers a typical half-octave frequency band aligning with the standard waveguide bands. Additionally, the probe features a circular aperture that is ideal for spherical near-field measurements with knife-edge profiles that minimize backscatter in planar near-field antenna measurements. Our probes are high accuracy calibration items that come with standard absorber and a mounting cage compatible with most NSI-MI positioners. This probe is shipped in a rugged storage case with custom-cut foam to protect your investment and is manufactured to provide many years of useful life in the measurement facility.

*PNF and SNF probe pattern coefficients provided are compatible with the NSI2000 software. CNF probe pattern coefficients may be available. Probe patterns may be available for the MI-3000 software. For other availability and compatibility with other antenna measurement software please contact sales.

Features

  • Dual-linear polarization
  • Broad, stable beamwidths
  • Low cross-polarization

Add-ons

  • Probe specific gain and pattern calibration
  • Calibration certificates
  • Adapter plate conversion kit for small roll axis positioners

Specifications:

Model ANT-DPP-18-26.5-ABS
Frequency Range 18.0 GHz–26.50 GHz
Waveguide Type WR-42
Max Power (W) 15
Connector Type 2.92 mm Female (2)
Absorber Size: mm (in.)  76.02 (3) Convoluted
Material Aluminum
Nominal VSWR 1.8:1 (Max < 2.5:1)
Cross-polarization discrimination > 35 dB
Port to port isolation > 35 dB
Operating temperature range 10°C–50°C
Gain (nominal) 9.0 dBi
3 dB beamwidth 40°

Typical Measured Data

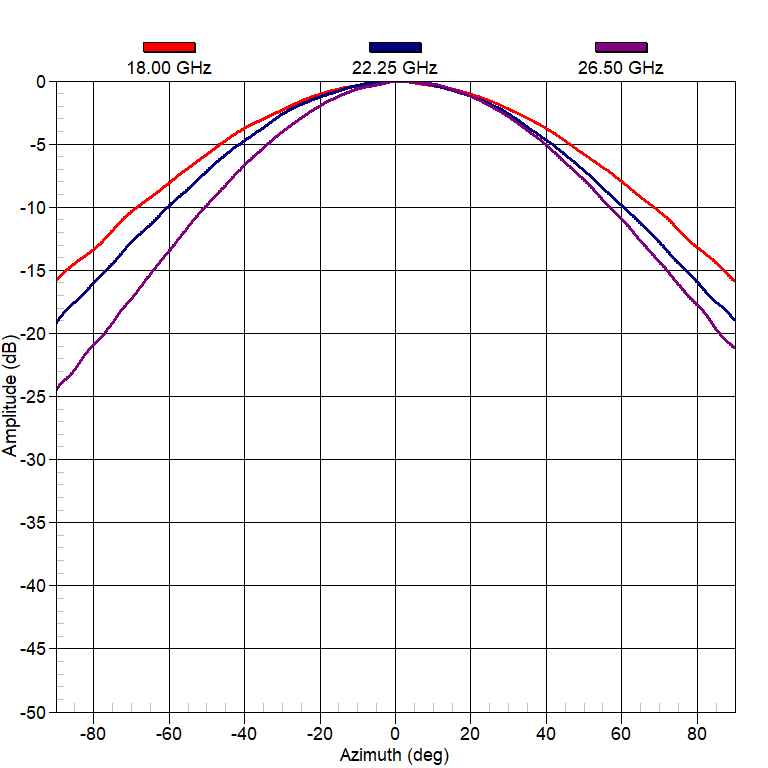

PORT 1 Horizontal-Cut

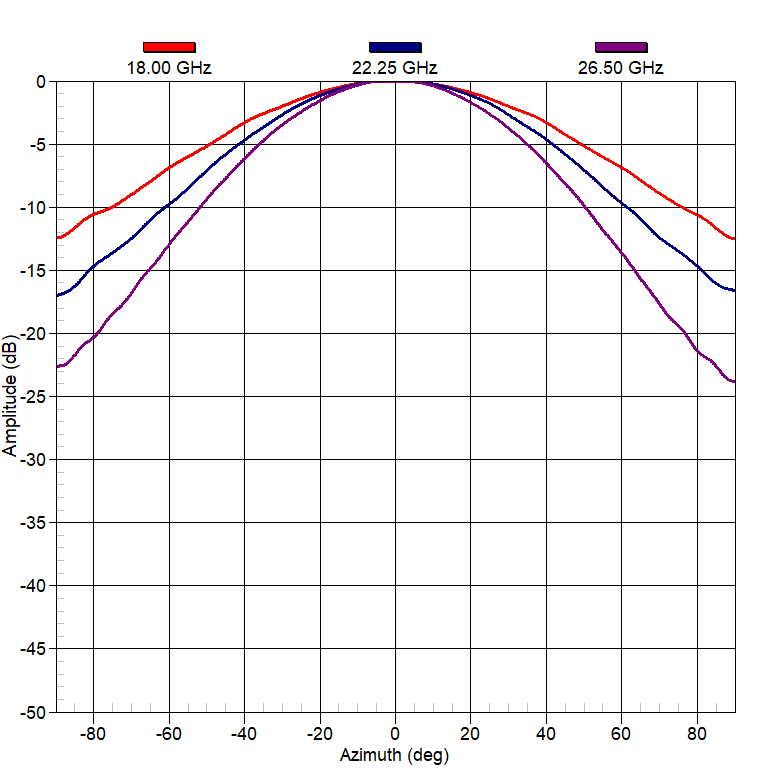

PORT 2 Horizontal-Cut

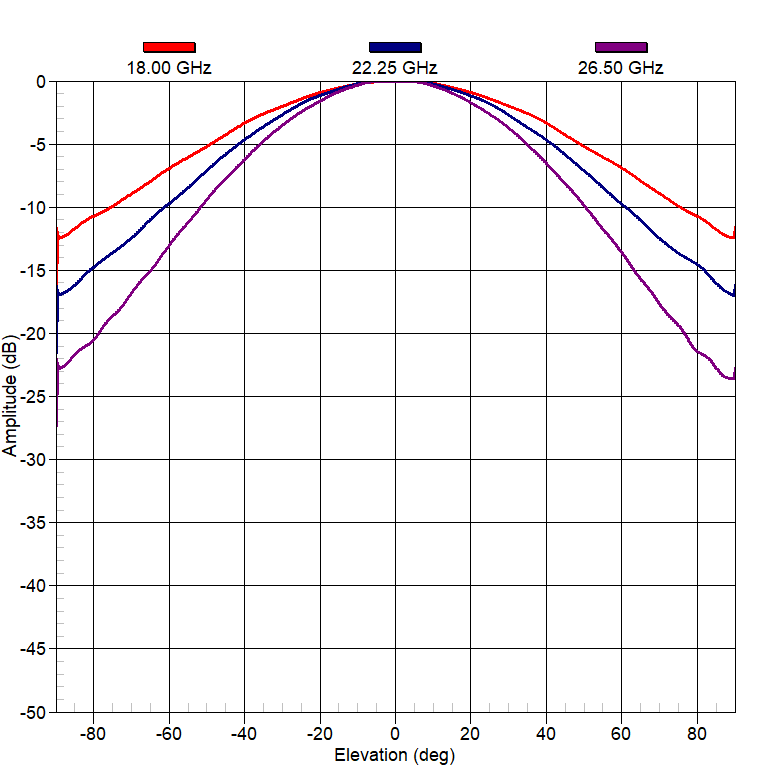

PORT 1 Vertical-Cut

PORT 2 Vertical-Cut
