0.3 GHz to 4.5 GHz Quad Ridged Horn Antenna

$13,500.00

SKU:
ANT-QRH-0.3-4.5
Availability:
Ships in 2-3 weeks if in stock
Frequency, Min (GHz):
0.3
Frequency, Max (GHz):
4.5
Connector:
N-Female
CW Power Handling (Watts):
400 W
Sales Tax and Shipping:
Calculated at Checkout
Adding to cart… The item has been added

This quad ridged horn is a versatile antenna that can be used for a variety of purposes, including spherical near-field (SNF) testing and far-field range illumination. With its wide frequency bandwidth, it can replace several standard Open-Ended Waveguide (OEWG) probes or horns, eliminating the need to manually change range antennas. Quad ridged horns are typically smaller than equivalent OEWG probes at low frequencies, making near-field testing easier and more convenient.

Features

  • Frequency range 300 MHz–4.5 GHz far-field use
  • Frequency range 300 MHz–2.0 GHz spherical near-field use
  • Wide bandwidth and low return loss

Quad Ridged Horn Pattern Calibration

Frequency Range: 300 MHz–2.0 GHz
Includes:

  • Non-Accredited Calibration Certificate
  • One set of Spherical Near Field probe patterns in either NSI2000 or MI-3000 format provided
  • Calibrated to the operational frequency band of the specific ANT-QRH horn

Specifications:

Model ANT-QRH-0.3-4.5
Frequency Range 300 MHz–4.5 GHz
VSWR (max) 1.6
VSWR (avg) 1.4
Connector N-Female (includes N (male) to SMA (female) right angle adapter)
Power (CW/Peak) 400 W / 750 W
Antenna Factor 15–30 dB/m
Polarization Dual Linear

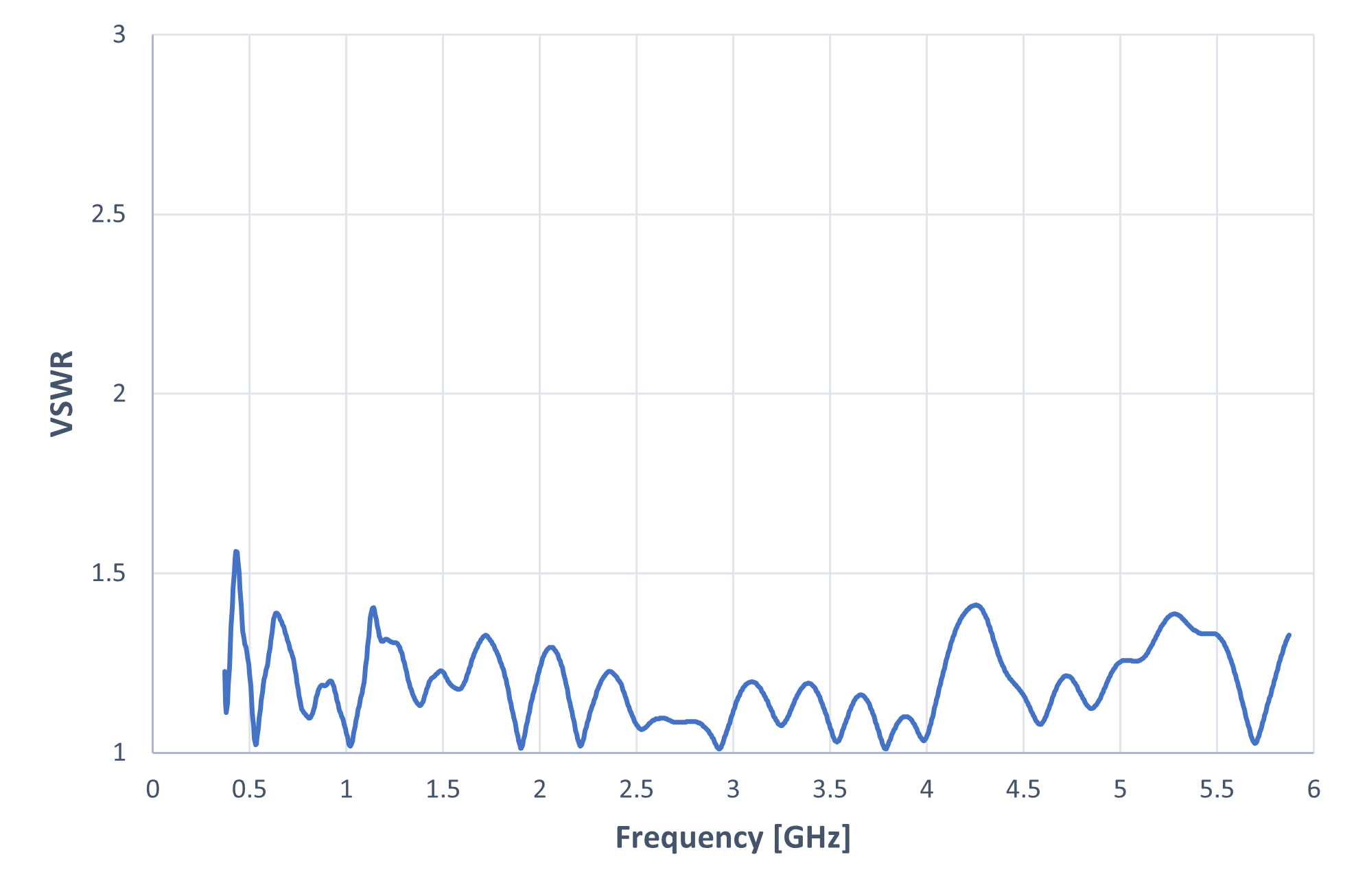

Typical Measured Data
