NSI-MI's quad ridged feeds (ANT-QRF) are the perfect solution for antenna test range applications that require a wideband frequency response. Our feeds are available to cover the frequency range from 6.0 to 18.0 GHz, making them an ideal choice for a compact range feed or use in spherical near-field measurements. Thanks to their robust mechanical design, the ANT-QRF can be used in almost any antenna test range.
Features
- 3D printed technology
- Robust mechanical design
- Dual linear polarization
- Low VSWR
Applications
- Automotive
- Radar Cross Section
- Radome
- Satellite
- Wireless
Specifications:
| Model | ANT-QRF-6-18 |
| Frequency Range (GHz) | 6.0–18.0 |
| Material | Aluminum |

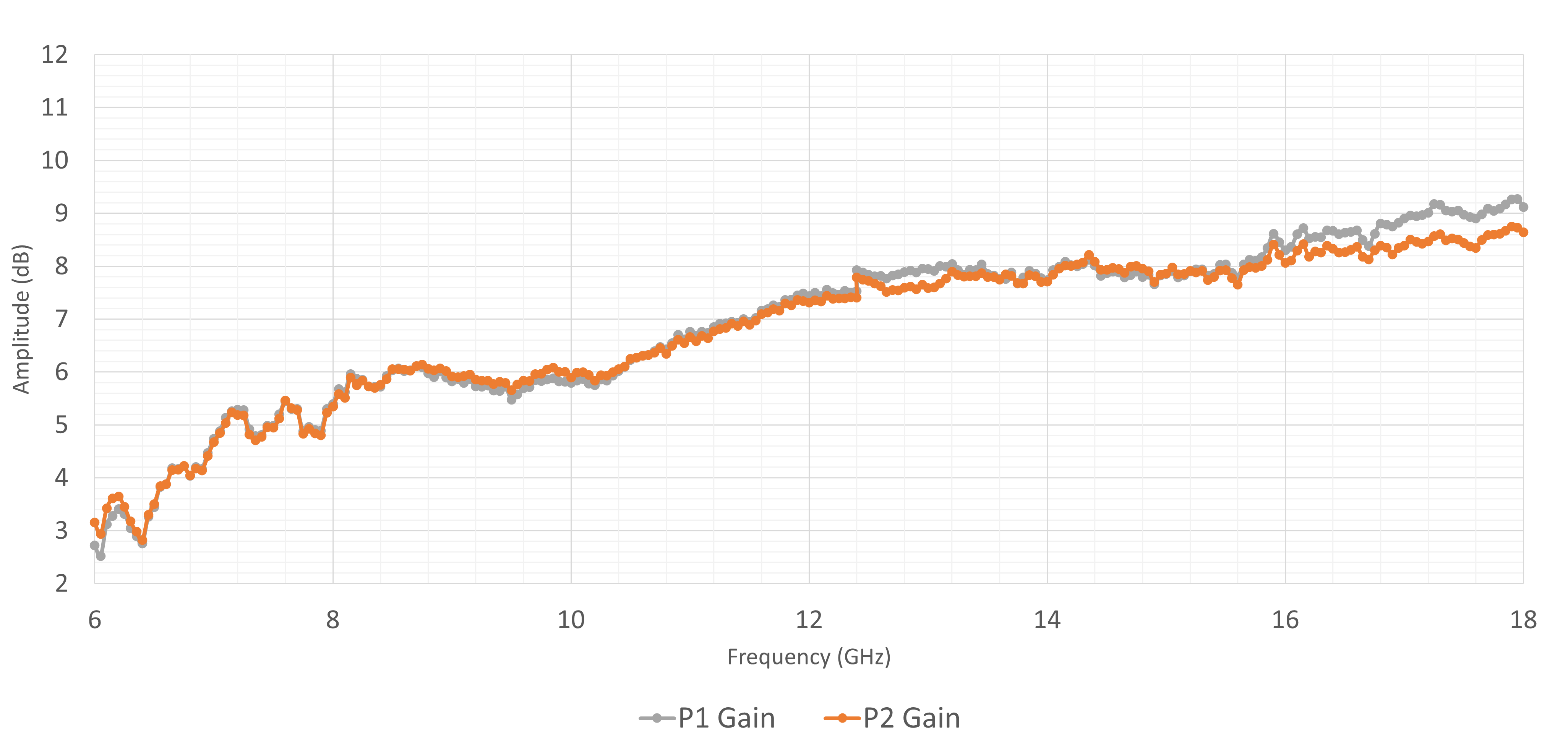

| Nominal Gain (dBi) | 7 |
| RF Connector | 2.9 mm - N-Female |
| VSWR | 2:1 |
| Port-to-port Isolation | -25 dB |
