NSI-MI offers a dual-linearly polarized, high-performance probe covering 1.7–2.6 GHz. This probe is designed specifically for near-field antenna measurements and come with a typical probe pattern correction coefficients for PNF and SNF measurements*. It covers a typical half-octave frequency band aligning with the standard waveguide bands. Additionally, the probe features a circular aperture that is ideal for spherical near-field measurements with knife-edge profiles that minimize backscatter in planar near-field antenna measurements. Our probes are high accuracy calibration items that come with standard absorber and a mounting cage compatible with most NSI-MI positioners. This larger sized probe is shipped in a re-usable and durable shipping container to protect your investment and is manufactured to provide many years of useful life in the measurement facility.
*PNF and SNF probe pattern coefficients provided are compatible with the NSI2000 software. CNF probe pattern coefficients may be available. Probe patterns may be available for the MI-3000 software. For other availability and compatibility with other antenna measurement software please contact sales.
Features
- Dual-linear polarization
- Broad, stable beamwidths
- Low cross-polarization
Add-ons
- Probe specific gain and pattern calibration
- Calibration certificates
Specifications:

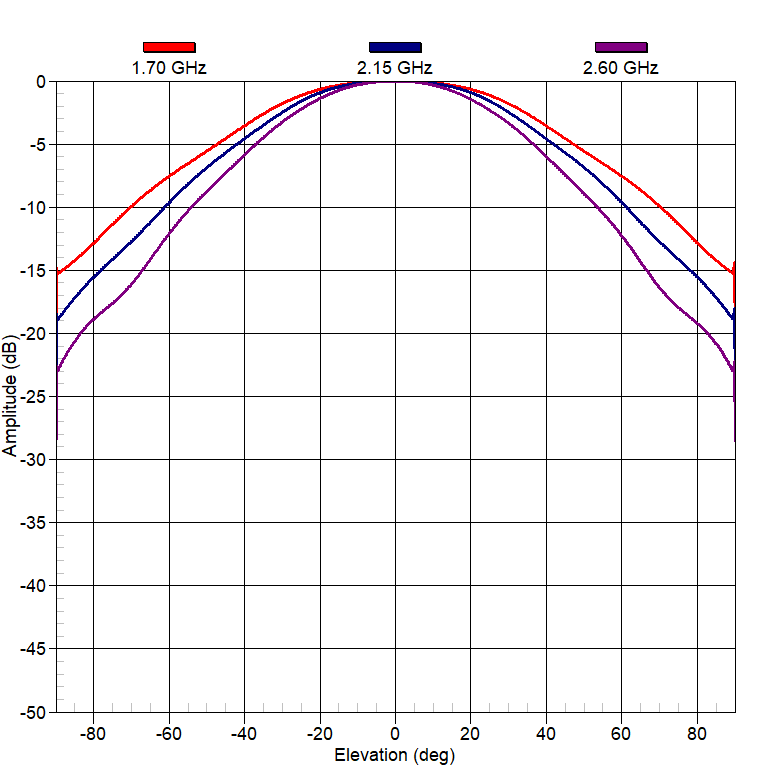

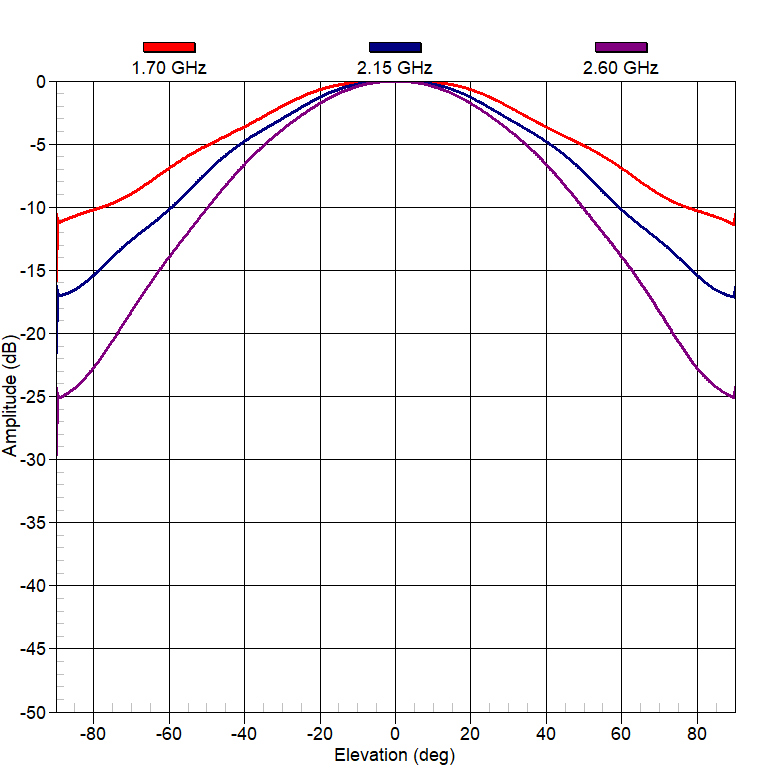

| Model | ANT-DPP-1.7-2.6-ABS |
| Frequency Range | 1.70 GHz–2.60 GHz |
| Waveguide Type | WR-430 |
| Max Power (W) | 50 |
| Connector Type | N-Female (2) |
| Absorber Size: mm (in.) | 203.2 (8) Pyramidal |
| Material | Aluminum |
| Nominal VSWR | 1.8:1 (Max < 2.5:1) |
| Cross-polarization discrimination | > 35 dB |
| Port to port isolation | > 35 dB |
| Operating temperature range | 10°C–50°C |
| Gain (nominal) | 9.0 dBi |
| 3 dB beamwidth | 40° |
