This quad ridged horn is a versatile antenna that can be used for a variety of purposes, including spherical near-field (SNF) testing and far-field range illumination. With its wide frequency bandwidth, it can replace several standard Open-Ended Waveguide (OEWG) probes or horns, eliminating the need to manually change range antennas. Quad ridged horns are typically smaller than equivalent OEWG probes at low frequencies, making near-field testing easier and more convenient.
Features
- Frequency range 700 MHz–11.0 GHz far-field use
- Frequency range 700 MHz–6.0 GHz spherical near-field use
- Wide bandwidth and low return loss
Quad Ridged Horn Pattern Calibration
Frequency Range: 700 MHz–6.0 GHz
Includes:
- Non-Accredited Calibration Certificate
- One set of Spherical Near Field probe patterns in either NSI2000 or MI-3000 format provided
- Calibrated to the operational frequency band of the specific ANT-QRH horn
Specifications:
| Model | ANT-QRH-0.7-11 |
| Frequency Range | 700 MHz–11.0 GHz |

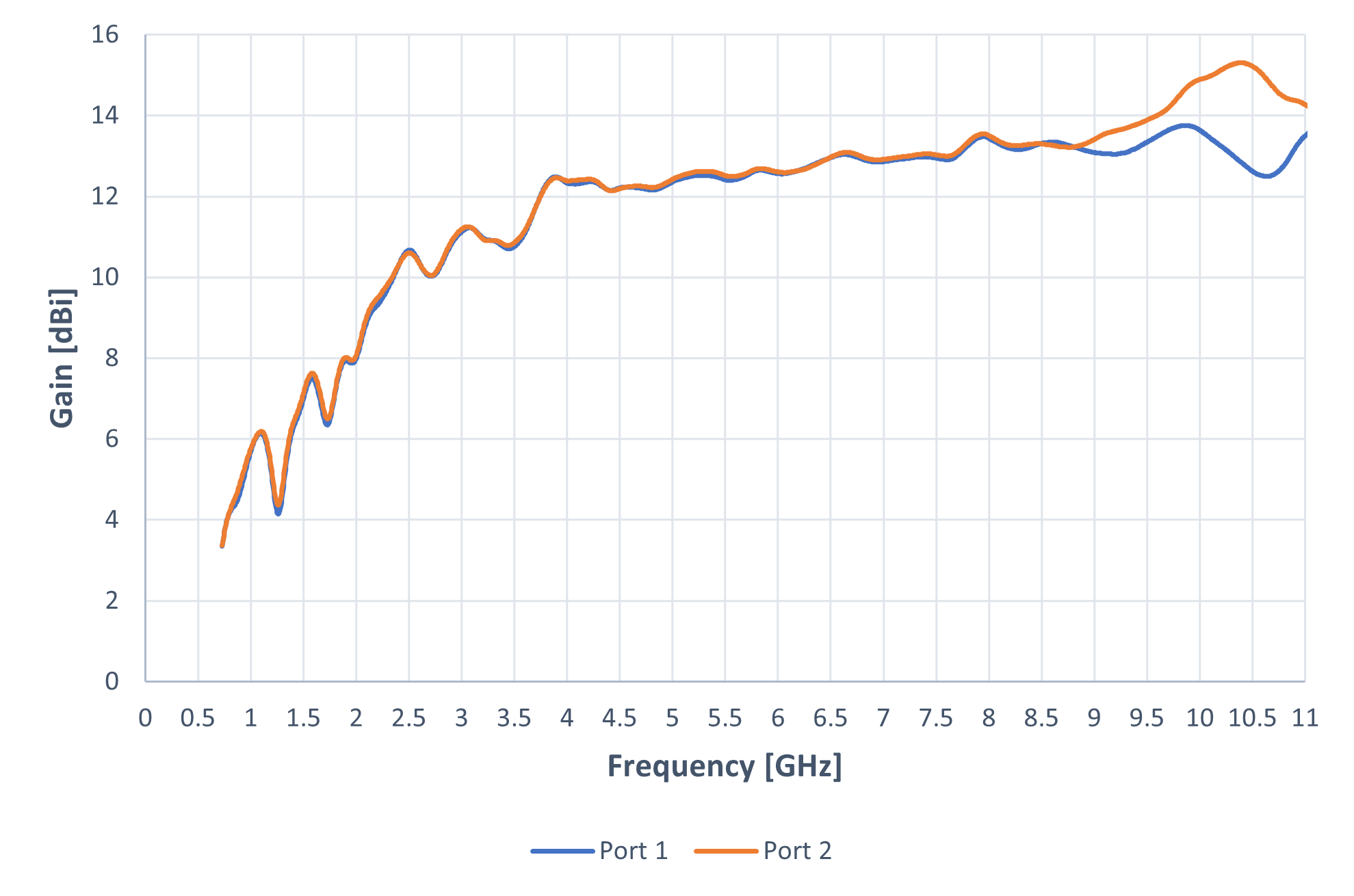

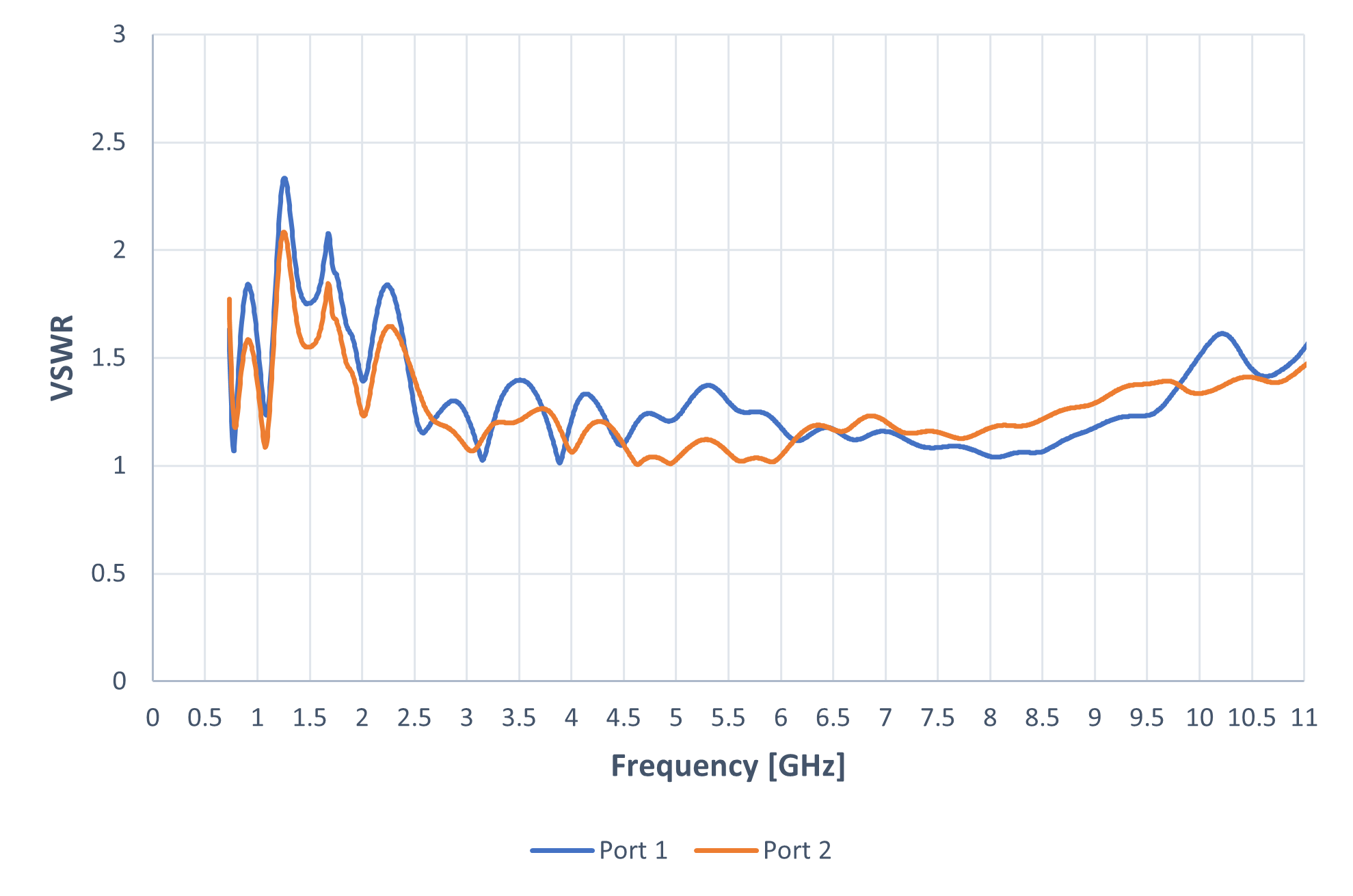

| VSWR (max) | 2.4 |
| VSWR (avg) | 1.4 |
| Connector | SMA Female (includes SMA (male) to SMA (female) right angle adapter) |
| Power (CW/Peak) | 100 W / 170 W |
| Antenna Factor | 17–38 dB/m |

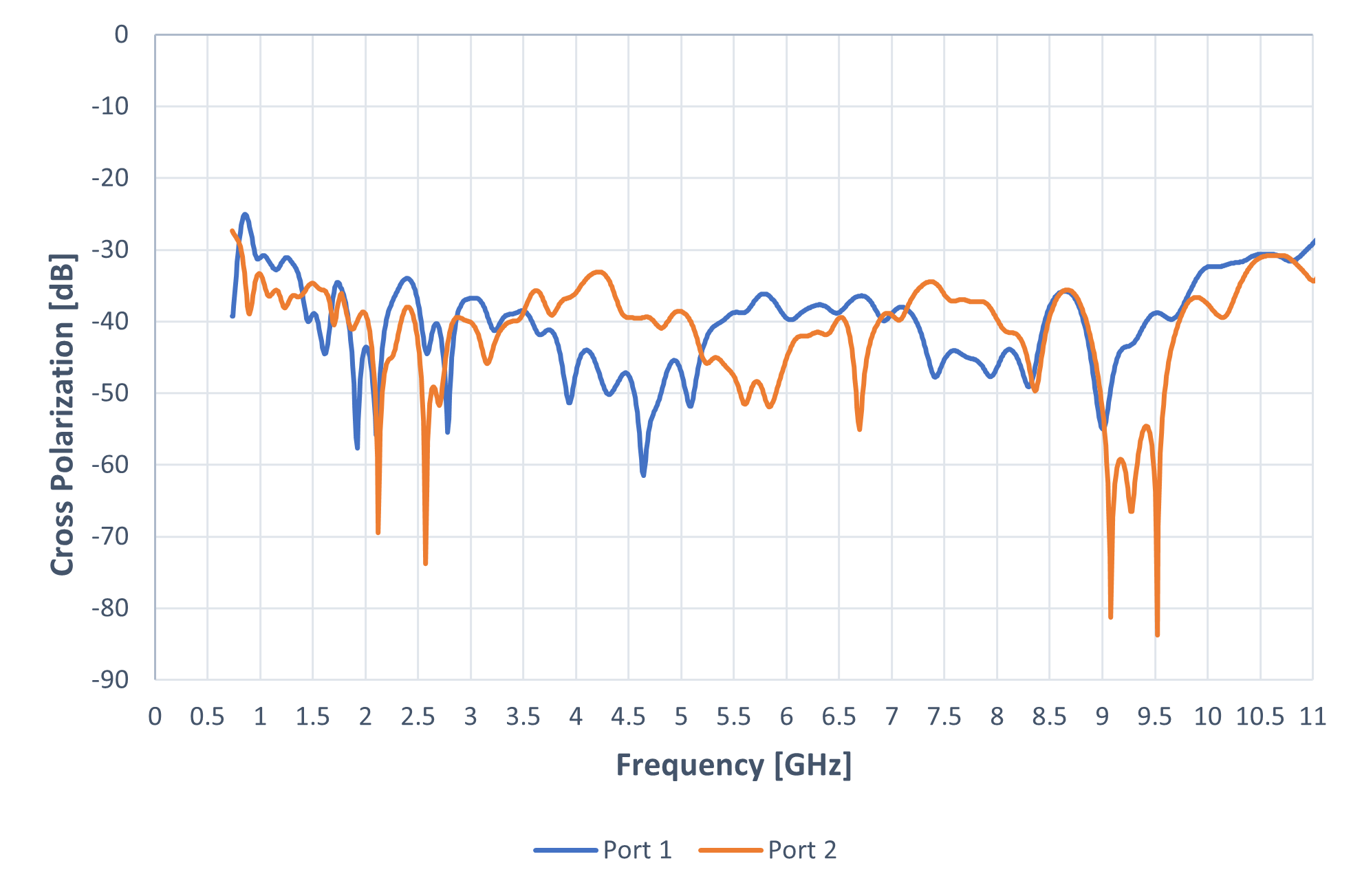

| Polarization | Dual Linear |
